Upgrading v0.9.8 to v0.9.9

Instructions on upgrading

During the Helm chart upgrade from v0.9.8 to 0.9.9 the following steps need to executed additionally to the following guide:

Upgrading the Helm Chart

Upgrading (after upgrading the Helm Chart)

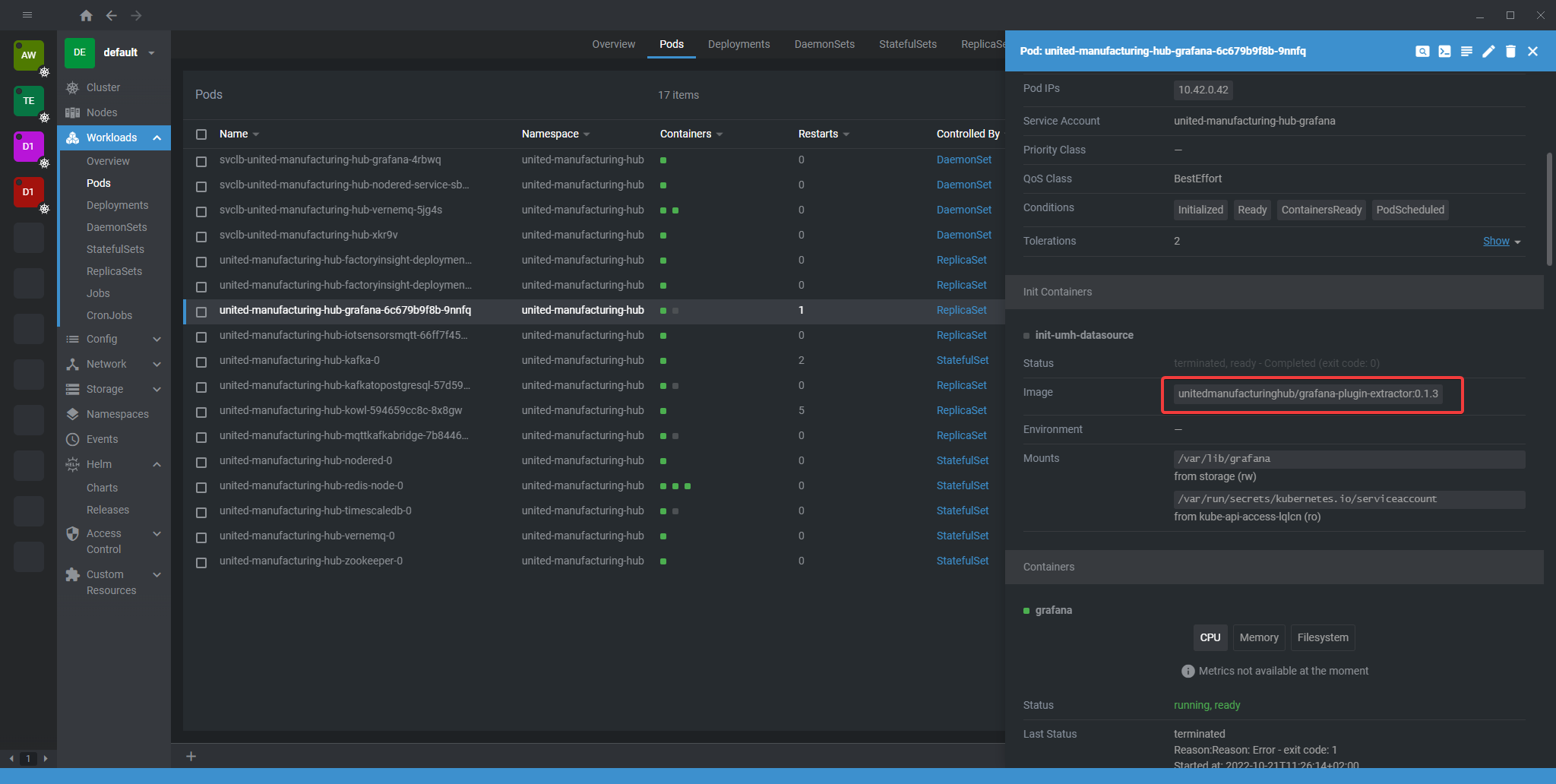

1. Open UMHLens

2. Select Workloads → Pods

3. Click on the Grafana pod

4. Check that the Init Container’s image is unitedmanufacturinghub/grafana-plugin-extrator:0.1.4



   1. If this is not the case:

   2. [Optional] Remove the Stateful & Deployments, listed in the normal upgrade guide

   3. Goto Helm → Releases and click on the 3 dots left to united-manufacturing-hub

   4. Select “upgrade”

   5. Replace the extraInitContainers from grafana with:

      extraInitContainers:
          - name: init-umh-datasource
            image: unitedmanufacturinghub/grafana-plugin-extractor:0.1.4
            volumeMounts:
              - name: storage
                mountPath: /var/lib/grafana
            imagePullPolicy: IfNotPresent


      1. If you are upgrading from 0.9.8, the only change should be the version (0.1.3 → 0.1.4)
